INCOLOY® Alloy DS

1.4862

A nickel-chromium-iron alloy with silicon which has good high temperature strength combined with excellent resistance to oxidation and carburisation.  In addition the silicon content imparts resistance to internal oxidation which occurs in high temperature atmospheres where the conditions vary between oxidising and reducing.  The alloy is widely used in a range of applications in the thermal processing industry.

Stock program

Bars

  • 8.00 mm
  • 10.00 mm
  • 12.00 mm
  • 16.00 mm
  • 20.00 mm
  • 25.00 mm
  • 30.00 mm
  • 40.00 mm
  • 45.00 mm
  • 50.00 mm
  • 60.00 mm
  • 65.00 mm
  • 80.00 mm
  • 90.00 mm
  • 100.00 mm
  •

Sheets / Plates

  • 6.00 mm

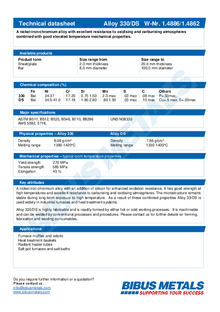

Downloads

Limiting
Ni¹   34.50 - 41.00 %
Fe   Balance
Cr   17.00 - 19.00 %
Si   1.90 - 2.60 %
Mn   0.80 - 1.50 %
Cu max. 0.50 %
Ti max. 0.20 %
C max. 0.10 %
S max. 0.02 %

¹ Plus Co

Density
g/cm³   8.08
lb/in³   0.292
Recommended Welding Products
Electrode INCO WELD A
  INCO WELD 117
Filler Metal INCONEL 82
  INCONEL 617
